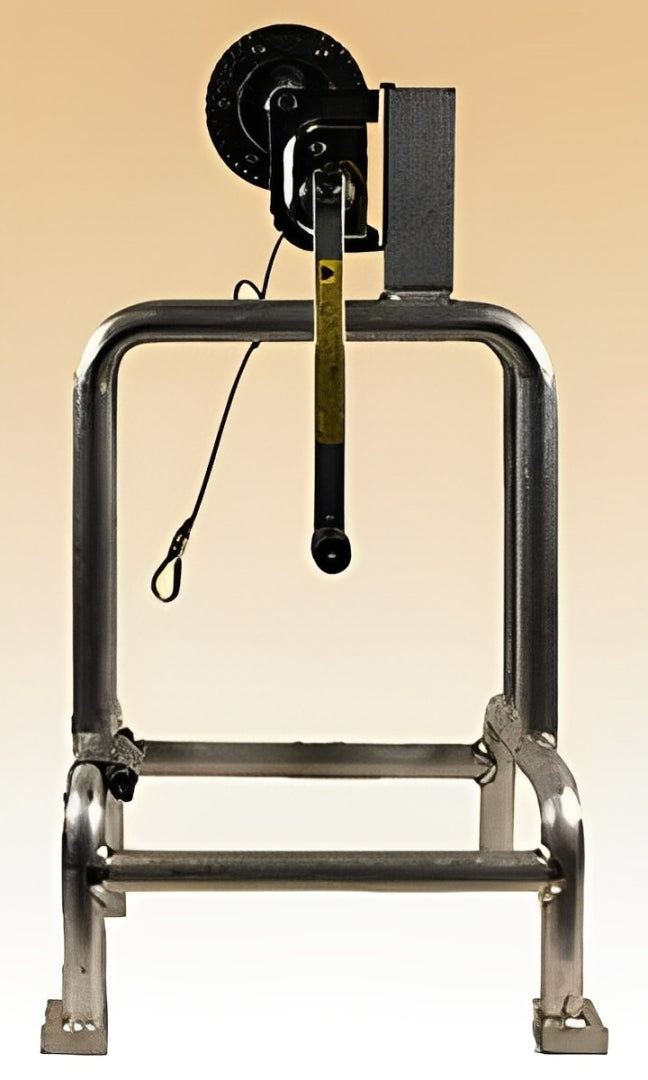

Super Winch

We are proud to offer a much-needed product to serious flue relining companies. Our Super Winch® enables you to install a
Super Flex® flexible liner from the bottom up. Completing virtually any flexible stainless steel reline that permits bottom access, regardless of diameter or length
requires:
A complete selection of Heavy-duty Nose Cones designed to pass through our top plates. Round and oval sizes are available.
When Super Flex® is pulled up through a flue, it seeks the center, avoiding the “digging into a side wall effect” that occurs from top-down installations. The Super Winch® can also be used to pull a liner downward, which is very helpful in a tight clearance installation.
Super Flex® will conform to the flue interior as it is winched through.

NOTE: Do not try this with all corrugated flue liners, as they rip apart even with moderate pressure.

FEATURES:
• Aluminum is constructed for strength, yet it weighs only 17 lbs.
• Built-in leg levelers for uneven crown surfaces, as well as integral mounting blocks with holes for plank mounting to accommodate any size chimney.
• 1,000 lb. winch and cable capacities, featuring forward and reverse ratcheting with built-in brake.
• Stainless steel ratchet spring.
• Grip grooved handle roller.
• Internally lubricated drum bushing.
• Heated treated, zinc plated, hi-carbon steel pinion gear.

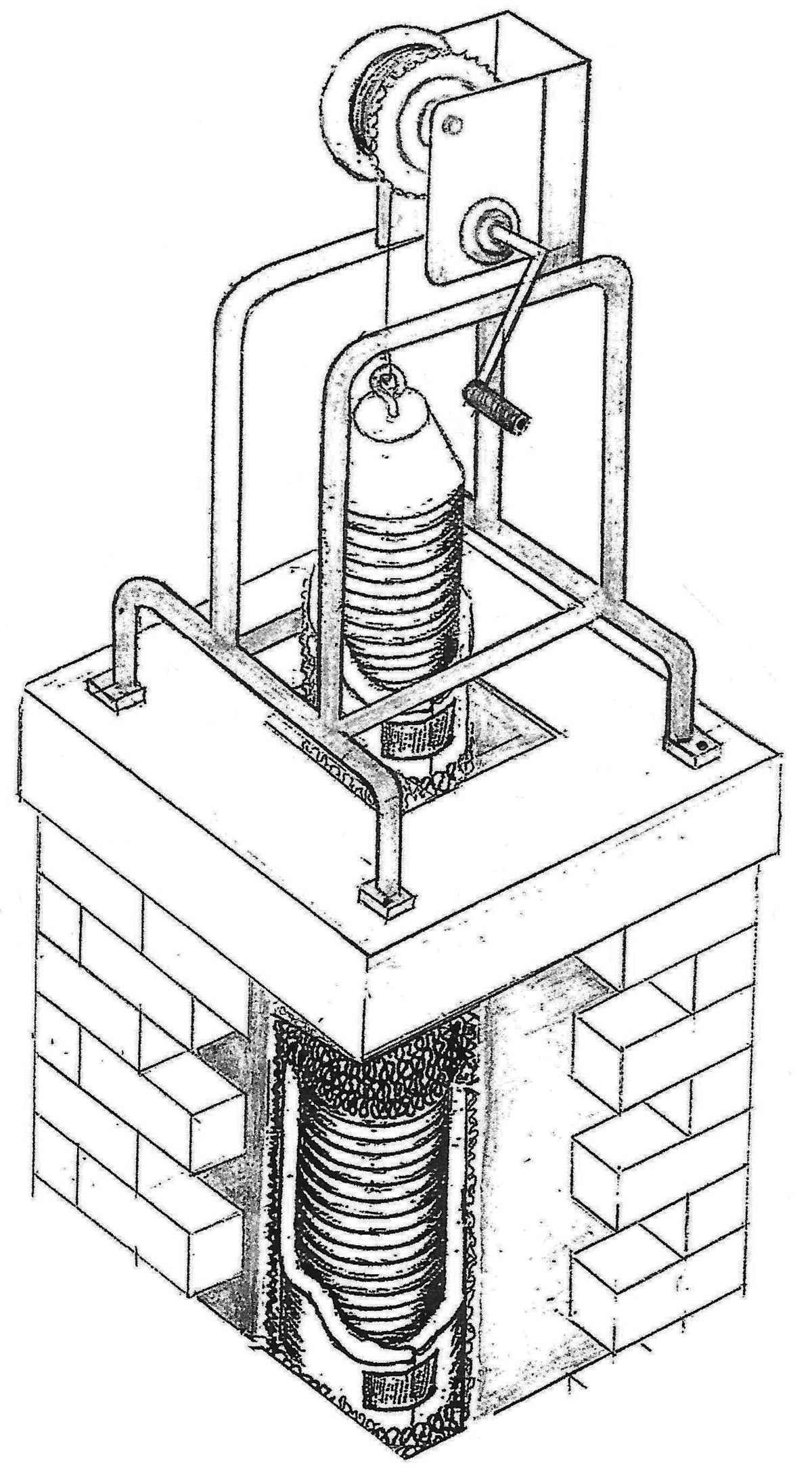

Five Easy Steps to Transform Your Liner Installation:

1) Position the Super Winch and one
person at the chimney top.
2) Lower the cable down.
3) Connect the Super Winch® cable to
our installed Nose Cone and Loop.
4) Crank the Super Flex® up through the chimney, and through our die-formed Top Support Plate.
5) Put on the Support Clamp and
disconnect the Nose Cone.
6) You are FINISHED!!!
